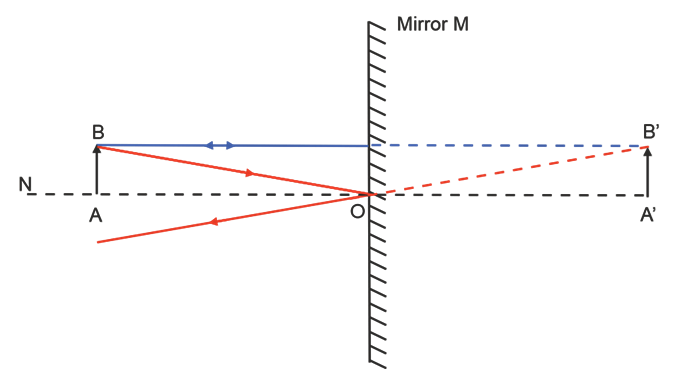

1- The plane mirror

A plane mirror is a surface capable of reflecting light almost entirely. The plane mirror is rigorously stigmatic.

50

Magnification

52

Conjugation relation

54

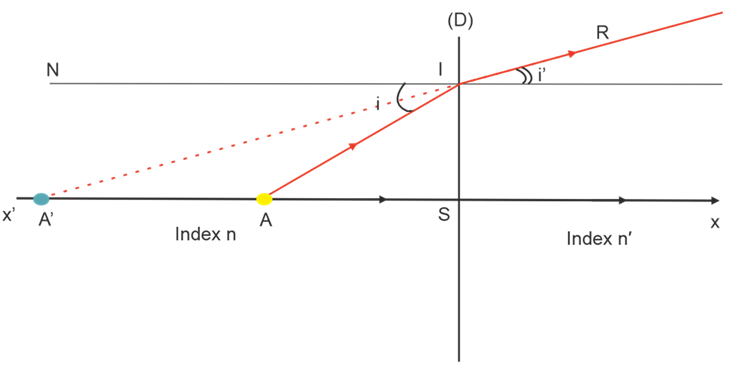

2- The plane diopter

A plane diopter is formed by two transparent media with different refractive indices, separated by a flat surface.

51

Conjugation relation

54


3- Parallel-sided blade

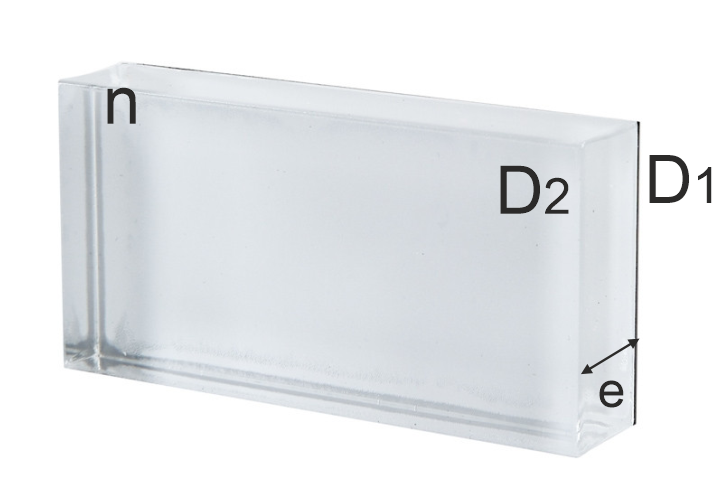

Definition

It is an association of two plane diopters D1 and D2 parallel to each other, distant from e, having a refractive index n and immersed in a medium of index n

12

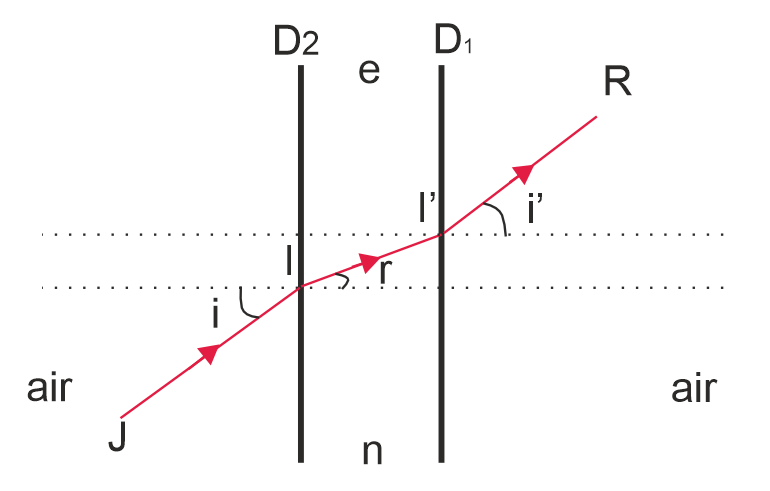

Emergence of a light ray

13

55

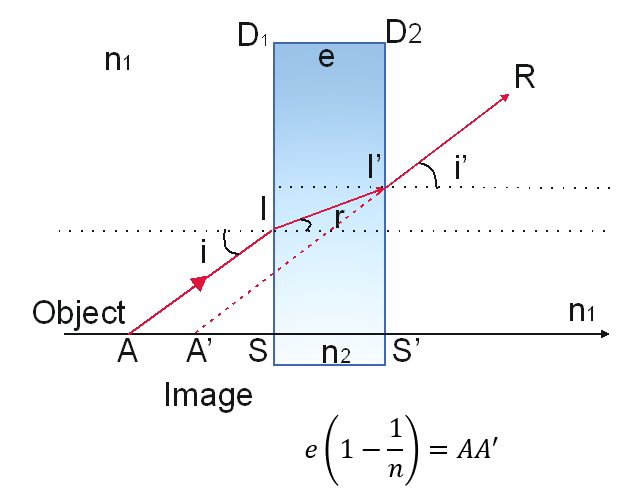

Geometric construction

The position of the image relative to the object:

56

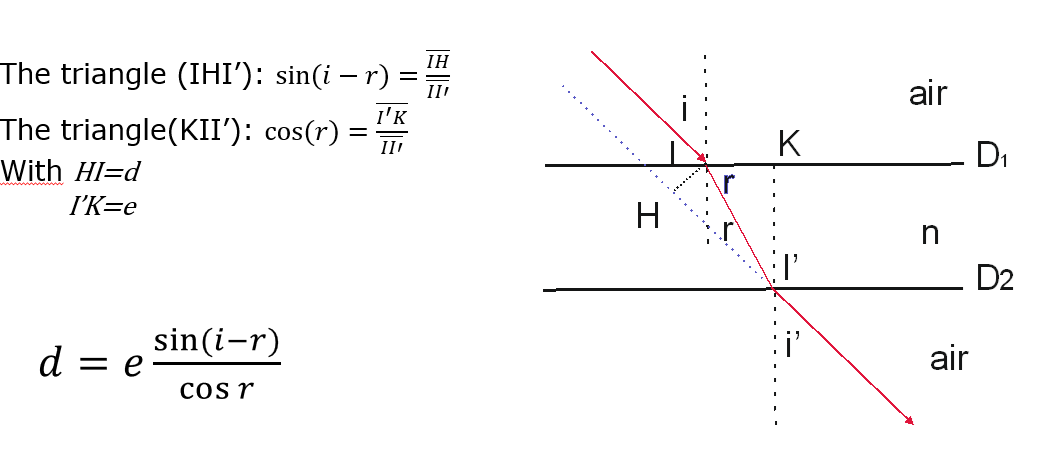

Lateral displacement d

57

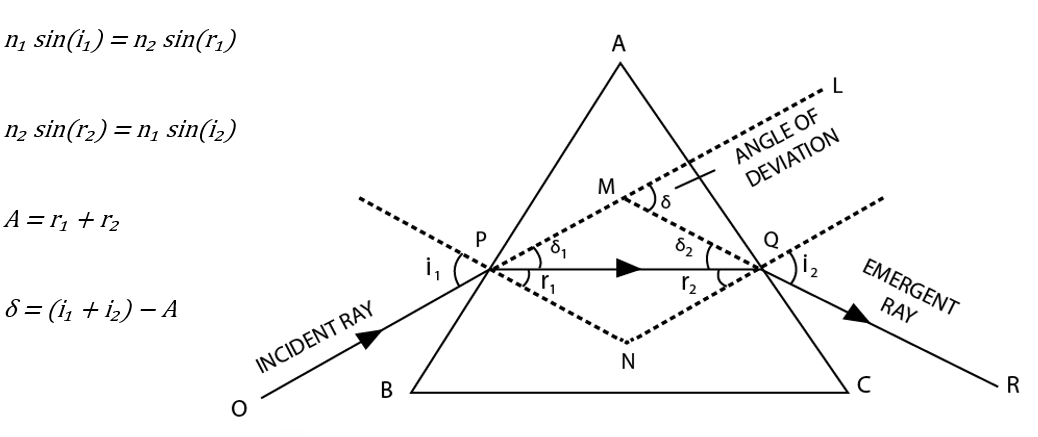

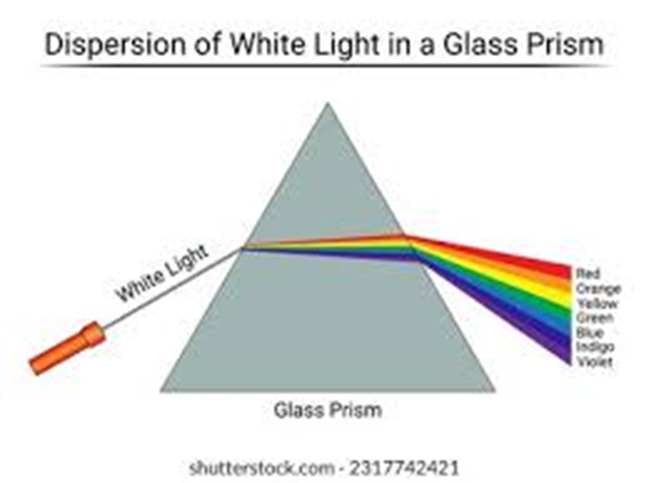

4- The prism

58

59


60
